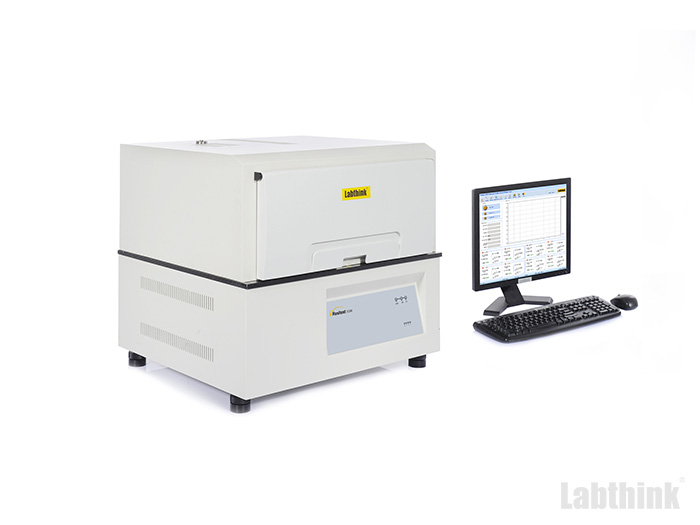

C840H Integrated Evaporation Residue Constant Weight Tester is used for the determinations of evaporation residue of food or pharmaceutical packaging, total migration of food contact or pharmaceutical contact materials or products, and evaporation residue of chemical reagents and purified water.
Technical Specifications
| Test Specs | Test Range | 0.05～10000 mg |
|---|
| Repeatability | ±0.05mg |
|---|
| Resolution | 0.01mg |
|---|
| Test Temperature | Room temperature～130 |
|---|
| Temperature Fluctuation | ±0.5°C |
|---|
| Test Stations | 25 |
|---|
| Test Cup Volume | 100mL |
|---|
| Net Weight | 440Lbs (200kg) |
|---|
| Configurations | Standard | Instrument mainframe, including scale (0.01mg), electrical control module, reagent collection module, liquid cooling module, test cups (25 cups), Φ8 mm Polyurethane tube |
|---|
| Optional | Software, computer system requirements for GMP, 21 CFR Part11, air compressor (exhaust capacity > 200L/min), test cup (100mL), scale (0.1mg), weight (50g) |
|---|
Principle
Total Migration
The sample is soaked in the solution which is chosen to simulate different foodstuffs. When the solution isevaporated and dried, the total migration amount of non-volatile matter can be obtained.
Non-volatile Matter
The sample is soaked in a solution as required by the various standards. After the soaking solution and blank solution are evaporated and dried, the total weight of non-volatile residue is obtained by comparing with the blank solution.
Standards
Pharmaceutical Industry: ISO 1135-4:2015, ISO 1135-5:2015, ISO 3826-1:2019, ISO 3826-4:2015, ISO 8536-4:2019, Pharmacopoeia, YBB00342002-2015, YBB00132002-2015
Food contact materials:EN1186-3, GB 31604.8-2016, GB/T 5009.60
chemical reagent residue after evaporation: ISO 759-1981, ISO 6353-1:1982 GM14, GB/T 9740
