Vacuum Leak Tester
Package Seal Integrity Testing / Package Leak Testers
Labthink offers a range of packaging leak testers designed to ensure the highest quality in seals, closures, and overall package integrity. These instruments facilitate crucial testing aligned with recognized international standards, including ASTM D3078, ASTM F2096, and other similar specifications. Utilizing these testers allows businesses to select optimal packaging and proactively prevent faulty seals that compromise product quality and shelf life.
Bubble Emission Method (ASTM D3078)
This method is ideal for packages containing a headspace or some internal gas volume. The sample is placed in the C660B Leak Tester, submerged under water, and the chamber is subjected to a vacuum. The presence of air bubbles indicates a compromise or fault in the package seal or material.
Internal Pressurization Test (ASTM F2096, ISO 11607)
Typically utilized for detecting gross leaks in sensitive packaging, such as medical packaging. The package is internally pressurized with the C660M Leak and Seal Strength Detector. It is suitable for testing various flexible packages such as aseptic packages, plastic tamper-evident closures,and flexible tubes.
Nondestructive Leak Test (ASTM F2338 - Vacuum Decay Method)
This is a standard, non-destructive method for detecting leaks. The Labthink C690H is often used for batch testing of containers like vials and ampoules. The test works by analyzing pressure changes measured by a sensor over time; leak rates and other results are calculated based on the rate of vacuum decay within the test chamber.
Leak tester for blister pack
Non Destruction Leak tester
For more information about Labthink Package Leak Tester, or questions about the seal integrity testers, contact us.
C690B Nondestructive Package Leak Detector
C690B Nondestructive Package Leak Detector is based on the vacuum decay method, designed and manufactured according to ASTM F2338.
New
C690M Nondestructive Package Leakage Detector
C690M Nondestructive Package Leakage Detector is based on the vacuum decay method and pressure decay method, and is designed and manufactured according to ASTM F2338 and other standards. It is professionally suitable for the trace leakage detection of various drug packaging.
New
C690H Nondestructive Package Leak Detector
C690H Nondestructive Package Leak Detector is based on the testing principle of the vacuum decay method, designed and manufactured according to ASTM F2338 and other standards. It is professionally suitable for batch sealing leak detection of vials, and trace leakage detection of ampoule, cartridge bottles, infusion bottles, prefilled syringes and other pharmaceutical packaging.
C660M Leak and Seal Strength Tester
C660M Leak and Seal Strength Tester can used for leak test, burst test and creep test of finished packages and three-side sealed packages, based on ISO 11067, ASTM F1140 & ASTM F2054.

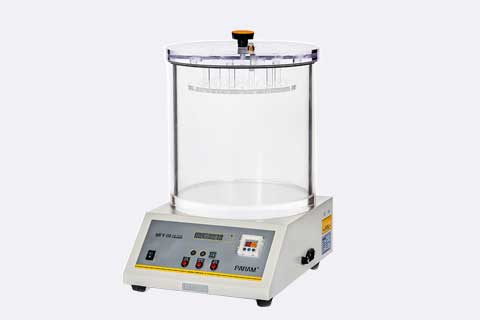

C660B Leak and Seal Strength Tester
C660B, also vacuum leak tester is based on ASTM D3078. Using bubble emission method, the vaccum Leak Tester can be used for gross leak test of various packages and bottles.
