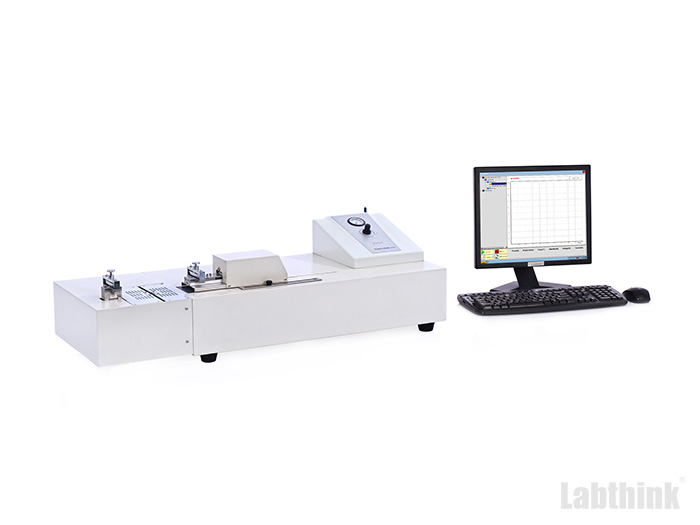

i-Thermotek 2500 Hot Tack Tester is developed to measure the heat sealing properties and seal strength (immediately after the seal) of flexible packaging materials according to ASTM F1921.
Technical Specifications
| Test Specs | Capacity Range | 0~200 N (30 N, 50 N, or 100 N is optional) |
|---|
| Test Accuracy | 1% FS |
|---|
| Resolution | 0.01 N |
|---|
| Sealing Temperature | Room temperature~250 °C |
|---|
| Accuracy | ±0.2 °C |
|---|
| Sealing Pressure | 0.05 MPa~0.7 MPa |
|---|
| Dwell Time (Heat Seal) | ≥0.1 s |
|---|
| Dwell Time (Hot Tack) | ≥0.1 s |
|---|
| Load Speed | 1500 (mm/min) |
|---|
| Sealing Jaw | Single heating or double heating (Customization available) |
|---|
| Specimen Width | 15 mm, 25 mm or 25.4 mm
(Optional and Customized) |
|---|
| Stroke | 200 mm |
|---|
| Gas Supply Pressure | 0.5 MPa~0.7 MPa
(outside of supply scope) |
|---|
| Port Size | Ф4 mm PU Tubing |
|---|
| Environment Monitoring Specs (Optional) | Voltage Monitoring Range | AC 0~250 V, with ±0.5% accuracy |
|---|
| Current Monitoring Range | 0~15 A, with ±0.5% accuracy |
|---|
| Energy Analysis Accuracy | ±0.5% |
|---|
| Environmental Temperature Monitoring Range | -10 °C~55 °C, with ±0.1 °C accuracy |
|---|
| Environmental Humidity Monitoring Range | 0~100% RH, with ±2% RH accuracy |
|---|
| Other Specs | Instrument Dimension | 1010 mm (L) x 365 mm (W) x 275 mm (H) |
|---|
| Power Supply | AC 110 V 60 Hz |
|---|
| Net Weight | 50 kg |
|---|
| Configurations | Standard | Mainframe (including Wireless Data Interface), Professional Software, LCD Monitor, Keyboard, Mouse, Grips for Hot Tack Test, Calibration Frame, Pedal Switch |
|---|
| Optional | Environment Monitoring Sensors (including voltage, current, temperature, and humidity sensors), Testing Plate, Welding Cloth, Customized Grips, Sample Cutter, Customized Sample Positioning Plate , Printer (compatible with PCL3) |
|---|
| Online Data Management System for Packaging Testing | Wireless Data Transfer Module, High Gain Antenna |
|---|
Note:
1. The gas supply port of instrument is Φ4 mm PU Tubing;
2. Customers will need to provide gas supply.
Standards
This hot tack tester conforms to the following standards:
ASTM F1921, ASTM F2029, QB/T 2358-1998, YBB 00122003
i-Thermotek 2500 Hot Tack Tester is designed to measure the following materials:
| Basic Applications | Hot Tack Performance
Plastic films, sheets and composite films e.g. milk bags |
Heat Seal Performance
Plastic films, sheets and composite films |
| Extended Applications | Adhesive Tapes
Test the adhesive property of adhesive tapes |
Functionality
With Digital P.I.D temperature control system, the preset temperature can be reached in a short time without fluctuations Four force testing ranges and six testing speeds are available to meet the requirements of distinct customers Hot tack testing function is available in this instrument Automatic zero, error alert, overload protection and stoke protection guarantee the safety operation Instrument can be started manually or by pedal switch which is convenient for customers operation Professional software supports assessing test results, recording and analyzing energy consumption Design
Embedded computer control system provides safer and more reliable data management as well as test operation. The hot tack tester can be easily operated with a mouse, a keyboard, and a monitor, without requiring a PC. The instrument is equipped with four USB ports and dual Internet ports for convenient data transmission. Sophisticated energy consumption and test environment monitoring and analysis functions for better test accuracy and reliability. (Relevant sensors are needed. For more information, please refer to the configuration in Technical Specifications.) Software
Interface: Windows-based operating interface Statistics: easy calculation for historical results, instrument usage, energy consumption, and large statistical information Data Comparison: by presetting target value and range, the system automatically generates data comparison after each test and intelligently judges whether the specimen passes or fails the test Test Report: can provide detailed test reports in various customized patterns Energy Consumption and Test Status Monitoring (Additional Sensors Required): the system monitors and displays real-time voltage, current, energy consumption of instrument as well as ambient temperature and relative humidity during the test, which serves to evaluate test data reliability User Management: multi-level account management for better data management and protection Operation Log: system automatically records all the operations by the user, which is easy to review
This hot tack tester can be used with our advanced Online Data Management System for packaging testing, which comes with two versions to meet distinct needs of our clients:
The Cloud Version - Consist of 6 functional modules: Test Management, Target Management, Instrument Management, File Management, Settings, and Online Support
- Cloud services: storage, calculation, and analysis of mass test data
- Automatically upload original test data to the cloud server to guarantee data security
- Intelligent statistical analysis of test results
- Easily accessible through the internet on PCs, laptops, mobile phones, and other devices anywhere and anytime, to check and review real time test results and historical test reports, as well as analytical graphs and statistical information
The Intranet Version- Featured with storage space for vast data, correlation analysis, trend analysis, and statistical analysis of test data, as well as report printing and data export functions
- Easily accessible via computers through Intranets
- "One Click Upgrade" to the powerful "Cloud Version"
