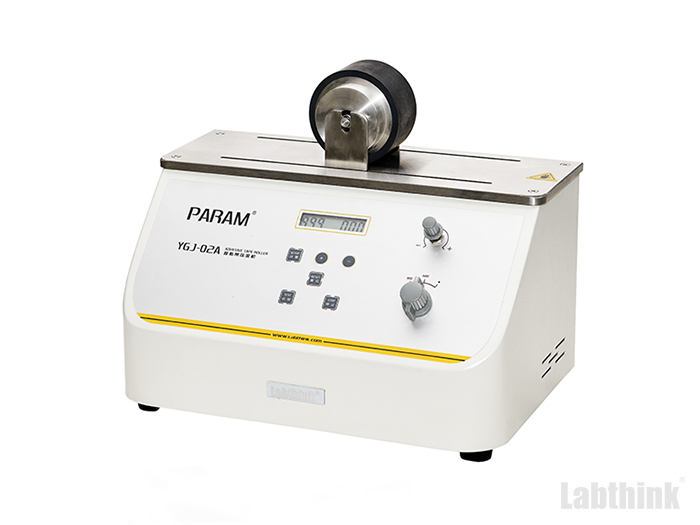

YGJ-02A Adhesive Tape Roller is professionally applicable to the determination of ink fastness of plastic films and glass paper decorating printed materials that utilize the intaglio printing technique. It also can be used to test adhesion condition of surface layers formed by the techniques including vacuum coated films, surface coating and lamination, etc.
The standard glass adhesive tape should be bonded together with ink printing surface, which is conditioned in the testing environment, with adhesive tape roller under specified load, rolling speed and rolling times. After a certain contacting time, separate them by disk stripping tester at certain pressure and peeling speed. The ink fastness property can be obtained by observing the status of ink layer after peeling operation.
This test instrument conforms to multiple national and international standards:
GB/T 7706, GB/T 7707, GB/T 4581, GB/T 2792, JIS C2107, JIS Z0237
YGJ-02A Adhesive Tape Roller is applicable to the determination of specimen adhesions of:
Used in the adhesive test of adhesives
|Specifications||YGJ-02A Adhesive Tape Roller|
|Rolling Speed||300 mm/min, 600 mm/min (Non-standard speed can be adjusted)|
|Roller Mass||20 N ±0.2 N|
|Rolling Times||3 (Maximum 999)|
|Instrument Dimension||360 mm (L) x 230 mm (W) x 260 mm (H)|
|Power Supply||220VAC 50Hz / 120VAC 60Hz|
|Net Weight||25 kg|
